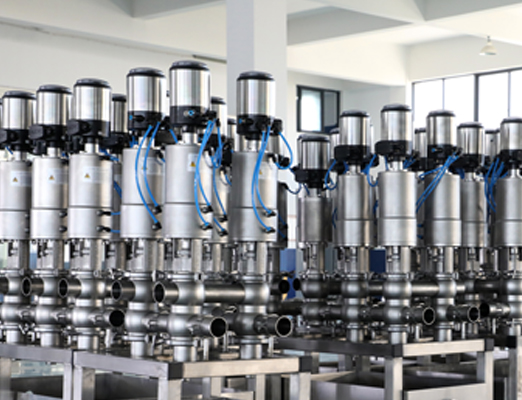

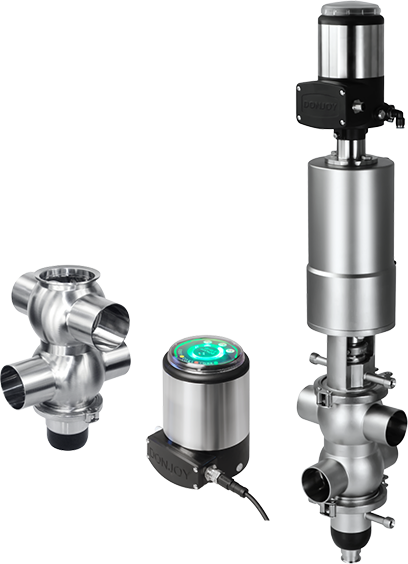

Mixproof valve
FHF- Type
The anti-mixing double seat valve is a valve with technical characteristics such as online in-situ CIP cleaning, SIP sterilization, leakage detection, double-layer sealing protection, and prevention of the risk of medium contamination. It also has a very flexible valve body combination and Functional configuration such as valve control unit, feedback device, position sensor, etc. The design of the valve is completely based on the high cleanliness requirements of the United States 3-A-85-03 design.
Mixproof valve
Technical Features
●Specifications: 1.5"-6", DN40-DN150
●Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
●Pressure: vacuum to 10bar (1.0 MPa)
●Temperature: -20℃ to +150℃, Depending on the seal material
●Sealing: EPDM FKM HNBR
●Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
●Connection method: Thread, clamp, welding, flange
●Drive mode: pneumatic
●Finish: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm
●Certification: FDA 177.2600; 3A-85-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.
●Material: 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
●Pressure: vacuum to 10bar (1.0 MPa)
●Temperature: -20℃ to +150℃, Depending on the seal material
●Sealing: EPDM FKM HNBR
●Connection standard: DIN SMS ISO IDF RJT BS4825 ASME BPE 3A DIN11864 DIN11853
●Connection method: Thread, clamp, welding, flange
●Drive mode: pneumatic
●Finish: Ra≤0.6μm; MP=Ra≤0.3μm; EP=Ra≤0.3μm
●Certification: FDA 177.2600; 3A-85-03; Glass II USP Glass VI Chapter 88; GB4806.11; EG VO/1935-2004; PED/97/23/EC.

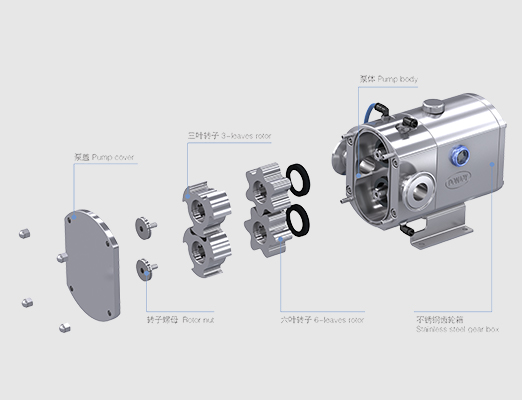

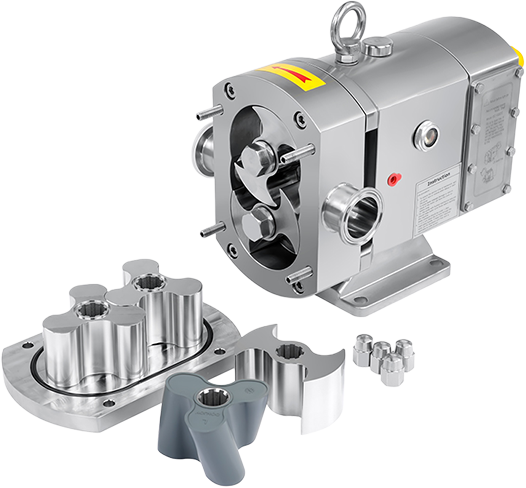

Lobe Pump
TU-STU-Series
Lobe Pump is a miniature displacement cam rotor pump, widely applied for transportation of high viscosity and low viscosity medium. Design features of the pump are small size, low noise, wide speed range, simple in maintenance and economical, whole stainless steel exterior, high purity interior and so on. Whole stainless steel exterior can satisfy the requirement of external flushing. The pump is mainly applied for biopharmaceuticals, fine chemicals, beer beverages, laboratories, etc. It is not only applied for various hygienic requirements, but also can be applied to various industrial fluid transportation applications.
LOBE PUMP SERIES
Solution for two-direction reversible,
high pressure, high and low viscosity, solid granule high clean solution
high pressure, high and low viscosity, solid granule high clean solution
Technical Features
●Max flow: 3000L/h
●Max pressure: 12bar
●Speed range: 10-1450 R.P.M
●Temperature: -40℃ to 150℃
●Surface treatment: Ra≤0.6μm；Ra≤0.4μm
●Material: 100% stainless steel, product contact part 316L
●Certification: 3-A-02-11 No.1759; FDA 177.2600; CE-MD/06-42 No.705201402401-00
●Max pressure: 12bar
●Speed range: 10-1450 R.P.M
●Temperature: -40℃ to 150℃
●Surface treatment: Ra≤0.6μm；Ra≤0.4μm
●Material: 100% stainless steel, product contact part 316L
●Certification: 3-A-02-11 No.1759; FDA 177.2600; CE-MD/06-42 No.705201402401-00
